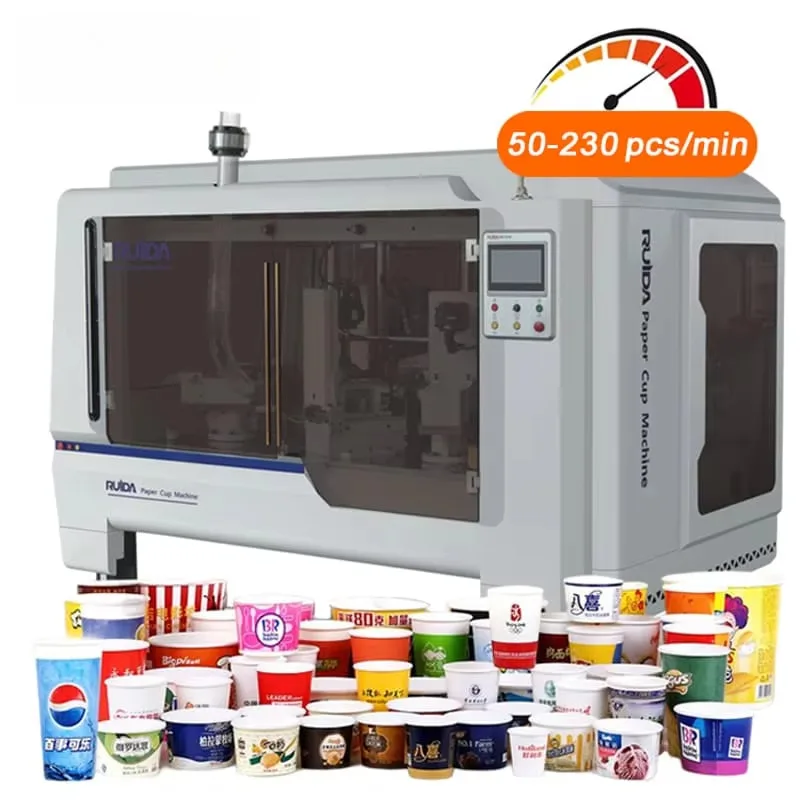

3-40 Oz Bowl Custom 50-230 Pcs/Min Full Automation High Speed Paper Cup Making Hine

Model

RD-230A

Forming Size

Top: 60-100mm, Bottom: 40-75mm, Height: 60-180mm

Cups Specifications

6-22oz Paper Cup

Speed

200-230pcs/min

Paper Material

PE/PLA

Paper Specifications

170-350 g/㎡

Gas Source

0.6m³/min

Total Power

380V 50HZ

General Power

50Kw

Weight

7500Kg

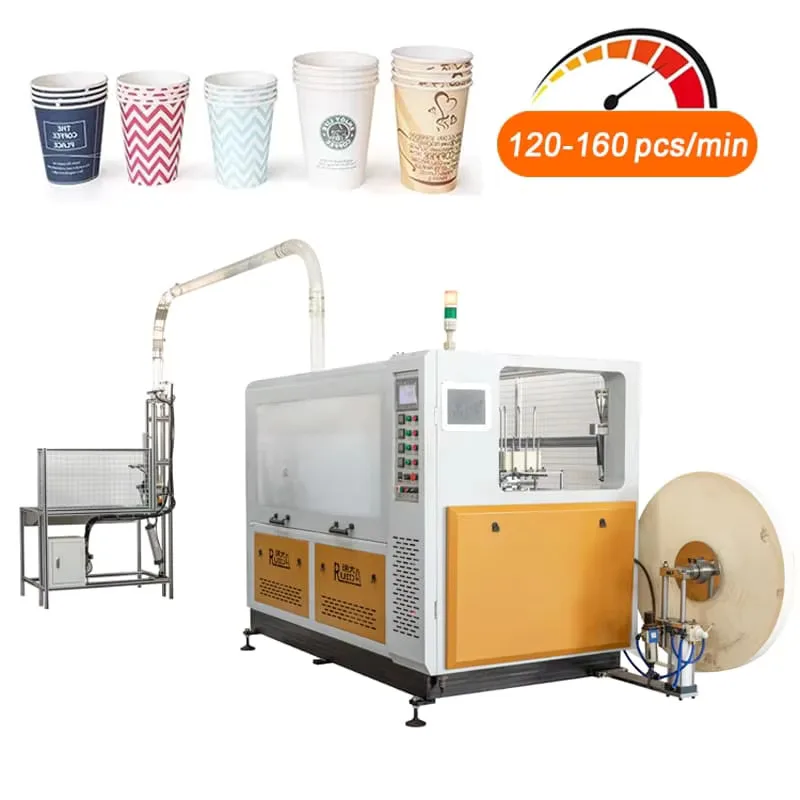

Model

RD-12/22-100A

Cups Specifications

4-22 oz Paper cups

Cups material

Single or double PE Coated Paper

Production rate

120-160 pcs/min

Paper Specifications

190-380g/㎡

Electricity Supply

380V/220V 50Hz

General Power

10 Kw

Gas Source

0.4m³/min

Weight

3000 Kg

Packing Dimensions

2750x1720x1800mm

Cups Specifications

2.5-22 oz Paper cups

24-40 oz Paper bowls

Paper material

190-500g/㎡

190-500g/㎡

Speed

80-100 pcs/min

80-90 pcs/min

Total power

380V 50Hz 10Kw

380V 50Hz 12Kw

Air consumption

0.4m³/min

0.5m³/min

Weight

3500kg

4000kg

Packing Dimensions

2720x1660x1900 mm

2900*1860*2000 mm

Model – RD-LB120-3600A

Model – 12

Model – 16

Model – 22

Maximum

Height: 110mm

Height: 139mm

Height: 177mm

Top:105mm, Bottom:75mm

Paper materials

180-350g/㎡

Speed

50-60pcs/min

Power supply

380v 50Hz / 220v 50HZ

General Power

8KW

Air source

0.4m³/min

Weight

2500kg

Packing Dimensions

2730x1460x1800 mm

Model

RD-100T

Cups Specifications

6-22oz Double Wall Paper Cup

Production rate

80-100 pcs/min

Paper Specifications

180-350g/㎡

Power Supply

380v 50Hz / 220v 50Hz

General Power

6 Kw

Gas Source

0.3-0.5m³/min

Weight

2400 Kg

Packing Dimensions

2600x1360x1800 mm

Model

RD-FBJ70 Square/Rectangle Paper Cup Machine

Cups Specifications

6-28oz Square Paper Cup

Weight

3200 kg

Total Power

380V 50HZ 15KW

Paper Material

170-350 g/m²

Speed

65-75 pcs/min

Shipping Details

By sea/air,according to customers' requirements.
